STATOR HON CBF 125 '09-13' CB125

STATOR HON CBF 125 '09-13' CB125

$24.60

Original: $82.00

-70%
STATOR HON CBF 125 '09-13' CB125—

$82.00

$24.60

The Story

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 35 mm
  • Exterior diameter: 92 mm
  • Thickness: 14 mm
  • Length of wires stator to grommet: 130 mm
  • Length of wires grommet to plug: 120 mm
  • Length of pickup coil's wire to grommet: 90 mm

    • Other specifications:

    • Number of wires: 4
    • Number of plugs: 3
    • Number of pins: 4
    • Number of poles: 12

    Wire-to-wire resistance:

    • Alternator White to Geen: = 0.9 ohms +-20%
    • Pickup: White/Yellow to Blue/Yellow = 115 ohms +-20%
    STATOR HON CBF 125 '09-13' CB125 - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    STATOR HON CBF 125 '09-13' CB125 - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

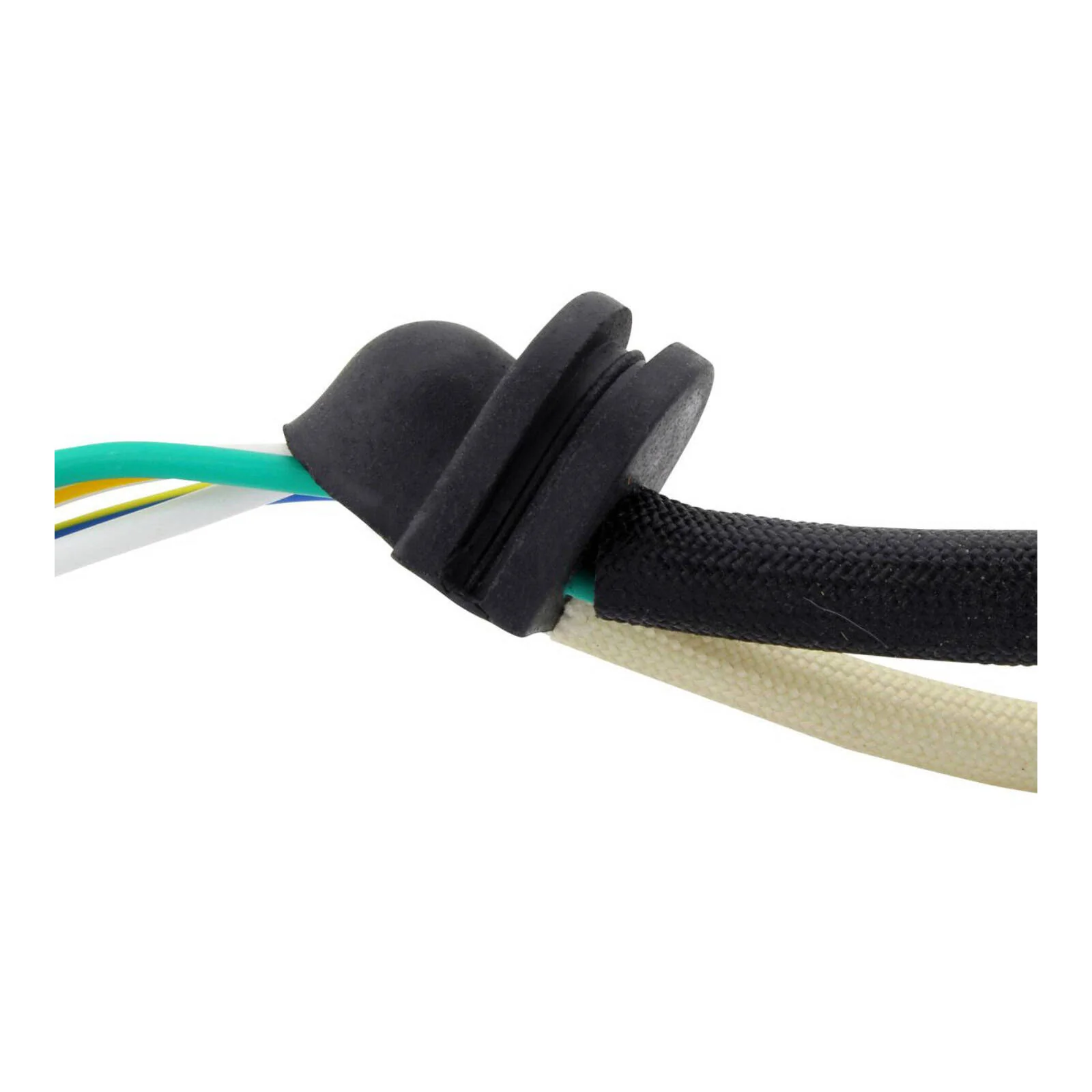

    STATOR HON CBF 125 '09-13' CB125 - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

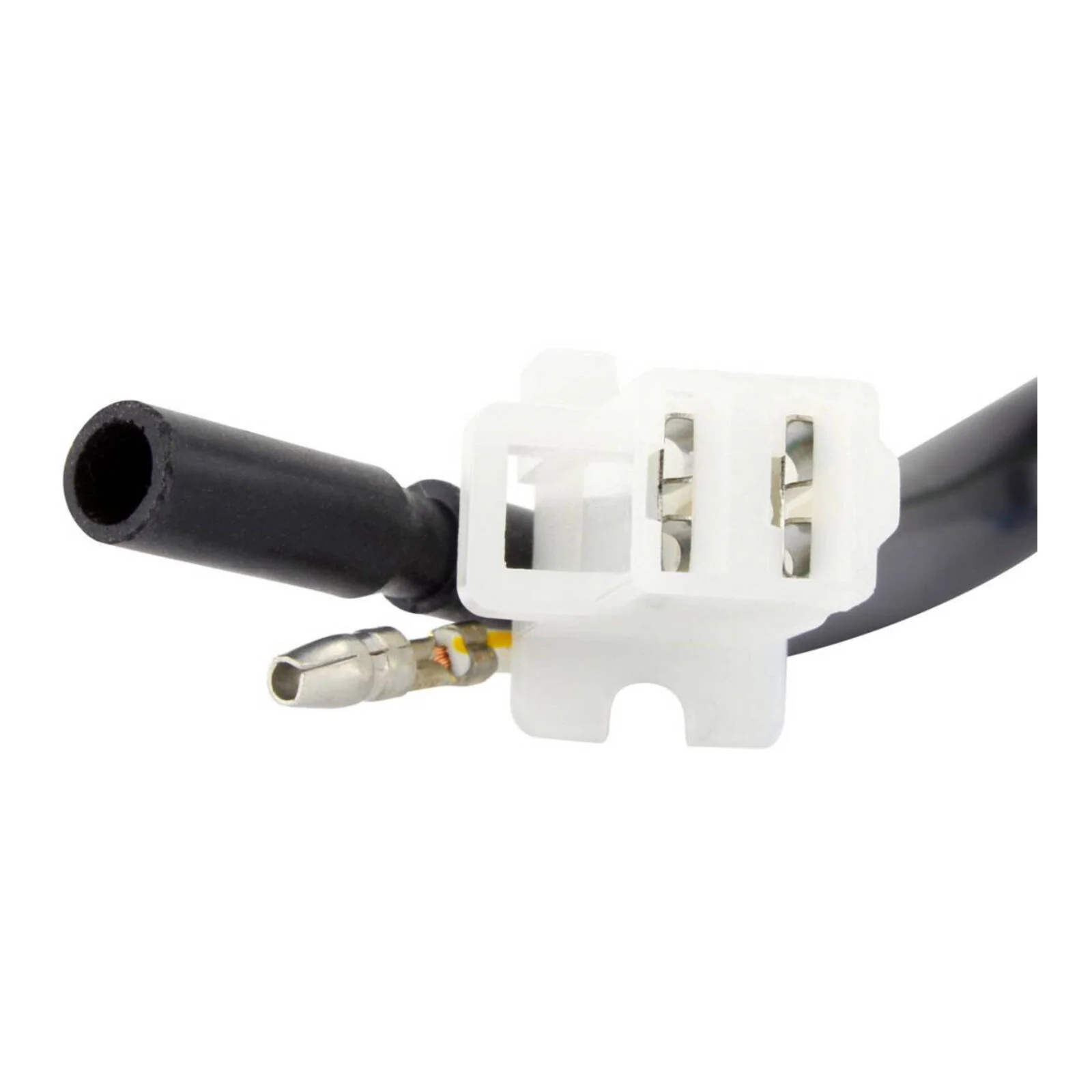

    STATOR HON CBF 125 '09-13' CB125 - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    STATOR HON CBF 125 '09-13' CB125 - Image 6

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    STATOR HON CBF 125 '09-13' CB125 - Image 7

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    STATOR HON CBF 125 '09-13' CB125 - Image 8

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

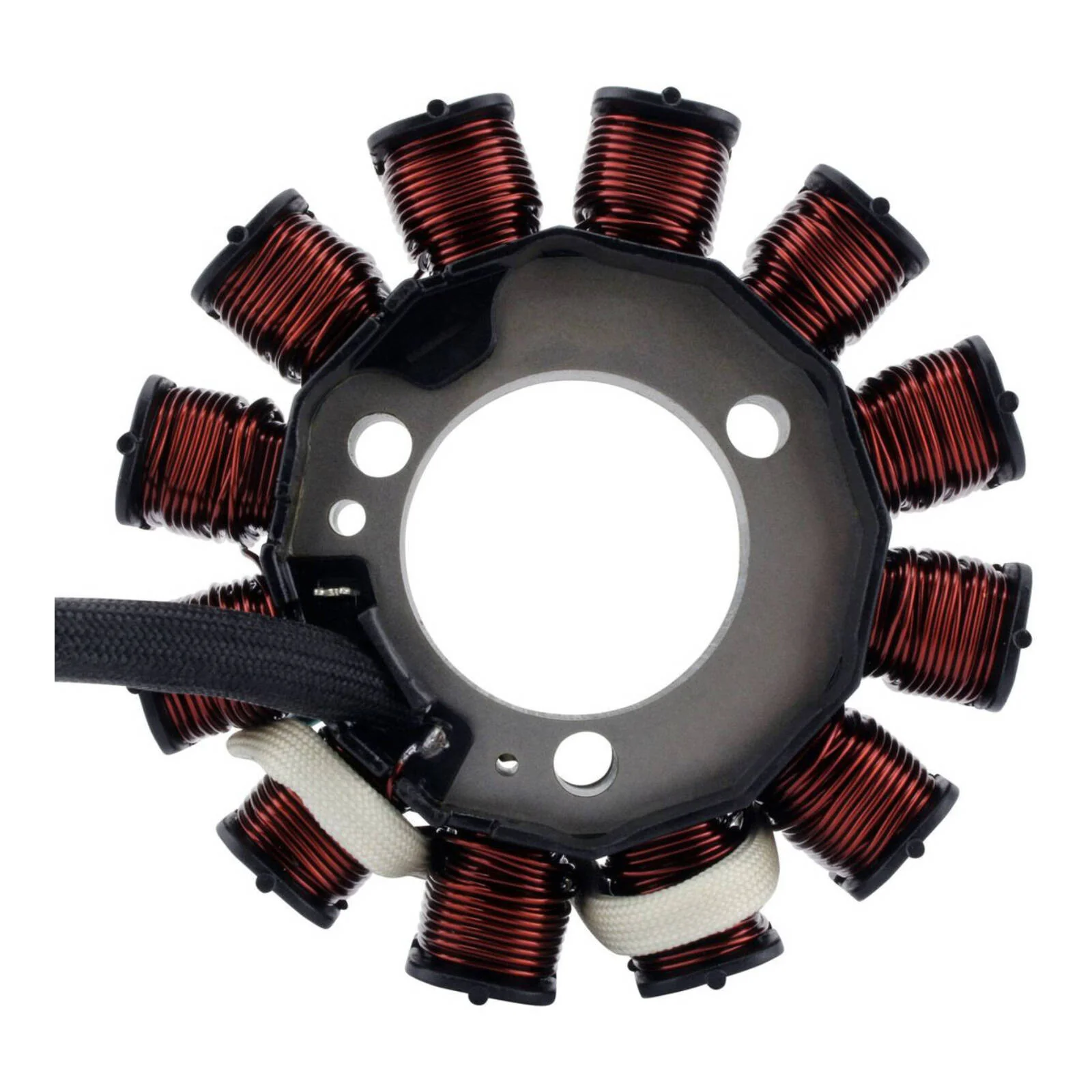

    STATOR HON CBF 125 '09-13' CB125 - Image 9

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    STATOR HON CBF 125 '09-13' CB125 - Image 10

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    STATOR HON CBF 125 '09-13' CB125 - Image 11

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    STATOR HON CBF 125 '09-13' CB125 - Image 12

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    Brand new aftermarket stator

    • Direct replacement to your original unit
    • Plug-and-play, direct fit, easy installation
    • Highest-grade lamination materials
    • Highest-grade copper windings, resistant to 200 degrees Celsius.
    • Pick up pulsar coil included
    • Connector included
    • Rubber grommet included
    • All products shipped are tested

    Specifications:

    Dimensions:

  • Interior diameter: 35 mm
  • Exterior diameter: 92 mm
  • Thickness: 14 mm
  • Length of wires stator to grommet: 130 mm
  • Length of wires grommet to plug: 120 mm
  • Length of pickup coil's wire to grommet: 90 mm

    • Other specifications:

    • Number of wires: 4
    • Number of plugs: 3
    • Number of pins: 4
    • Number of poles: 12

    Wire-to-wire resistance:

    • Alternator White to Geen: = 0.9 ohms +-20%
    • Pickup: White/Yellow to Blue/Yellow = 115 ohms +-20%
