GENERATOR STATOR HOND TRX 650 RINCON 03-05'

GENERATOR STATOR HOND TRX 650 RINCON 03-05'

$144.00

Original: $479.99

-70%
GENERATOR STATOR HOND TRX 650 RINCON 03-05'—

$479.99

$144.00

The Story

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 20 mm
  • Length of wires stator to grommet: 75 mm
  • Length of wires grommet to plug: 180 mm

    • Other specifications:

    • Number of wires: 5
    • Number of plugs: 1
    • Number of pins: 5
    • Number of poles: 18

    Wire-to-wire resistance:

    • Alternator: Yellow to Yellow = 0.6 ohms +-20%
    • Alternator: Yellow to ground = O.L
    • Pickup: Blue/Yellow to Green= 340 ohms +-20%
    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 6

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 7

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

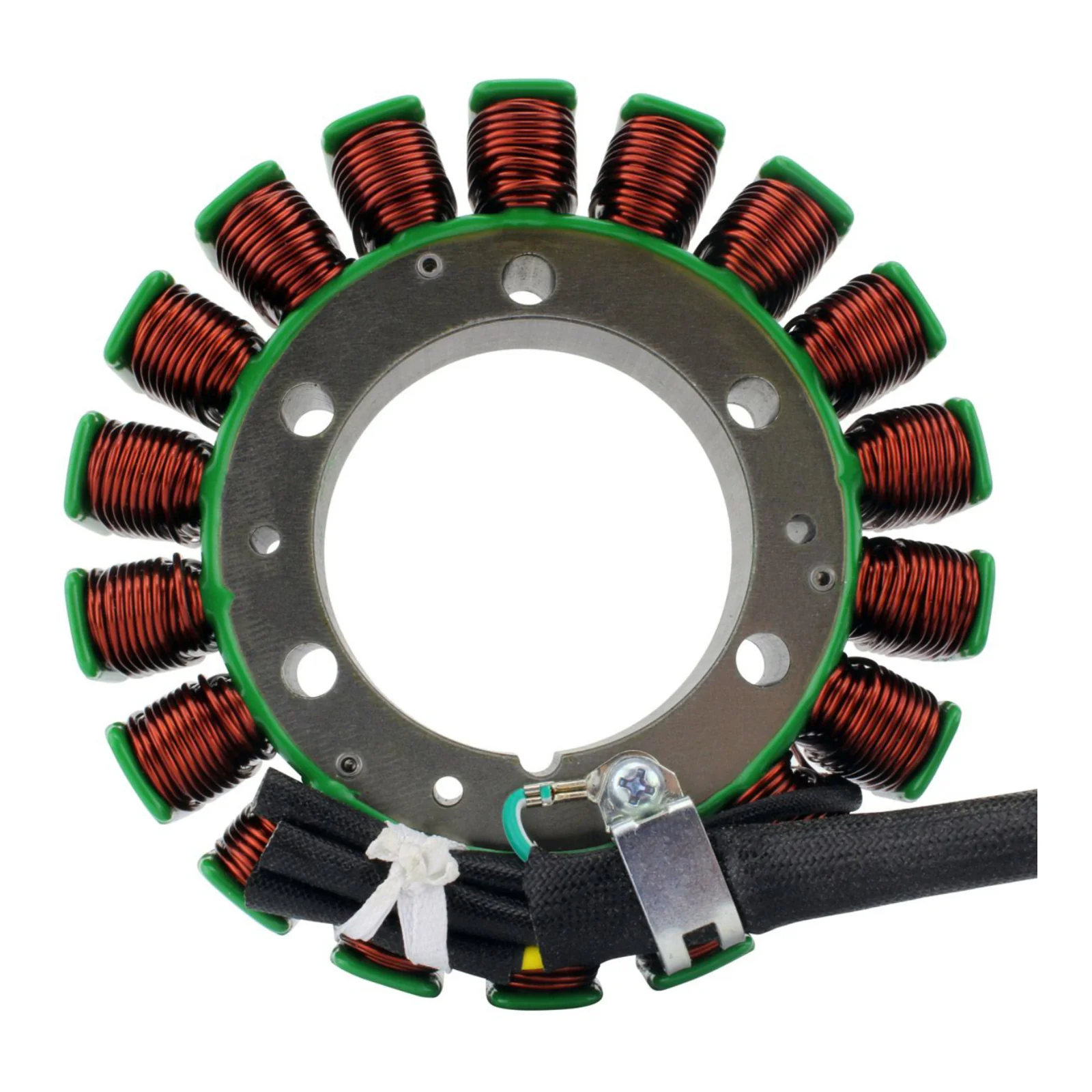

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 8

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

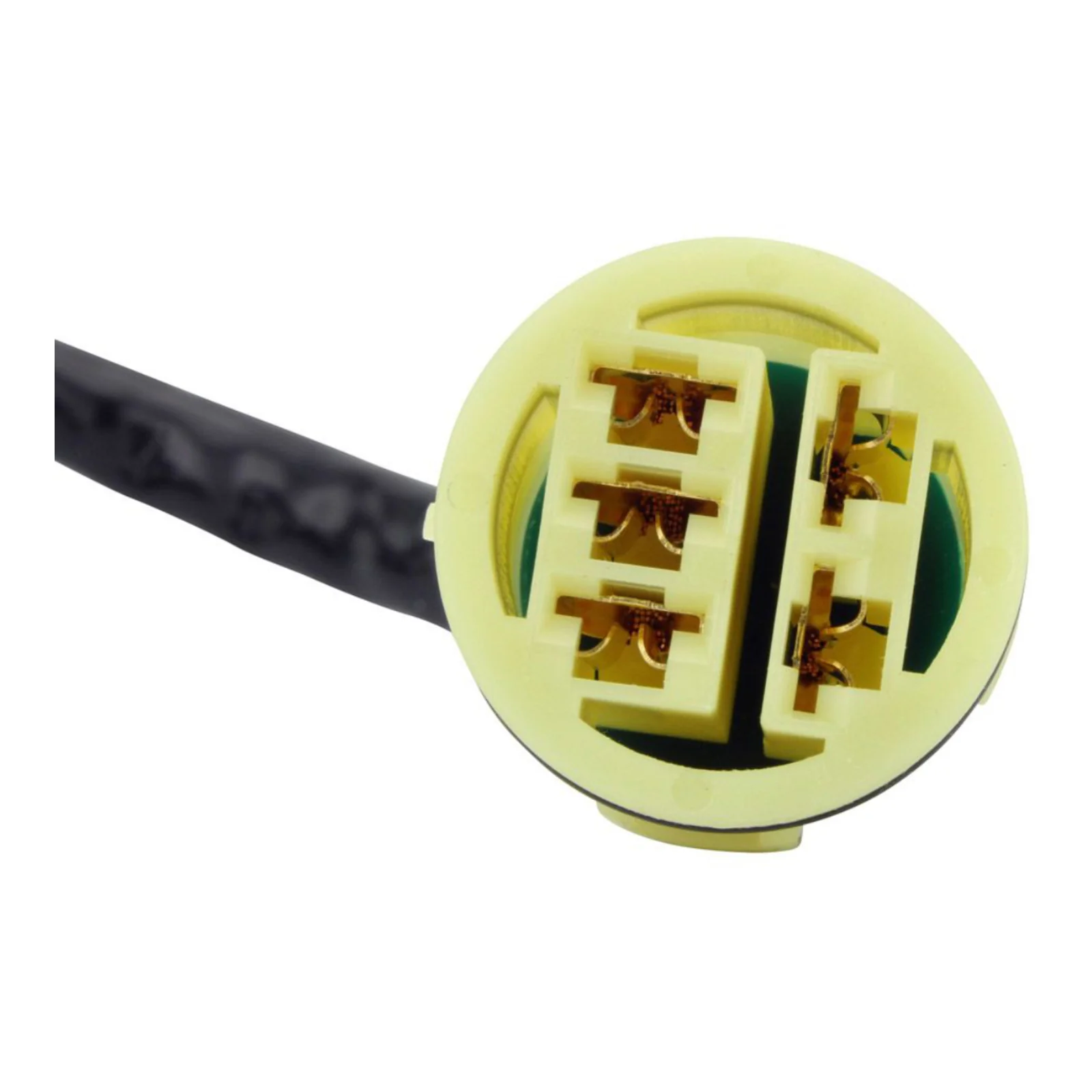

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 9

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 10

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 11

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

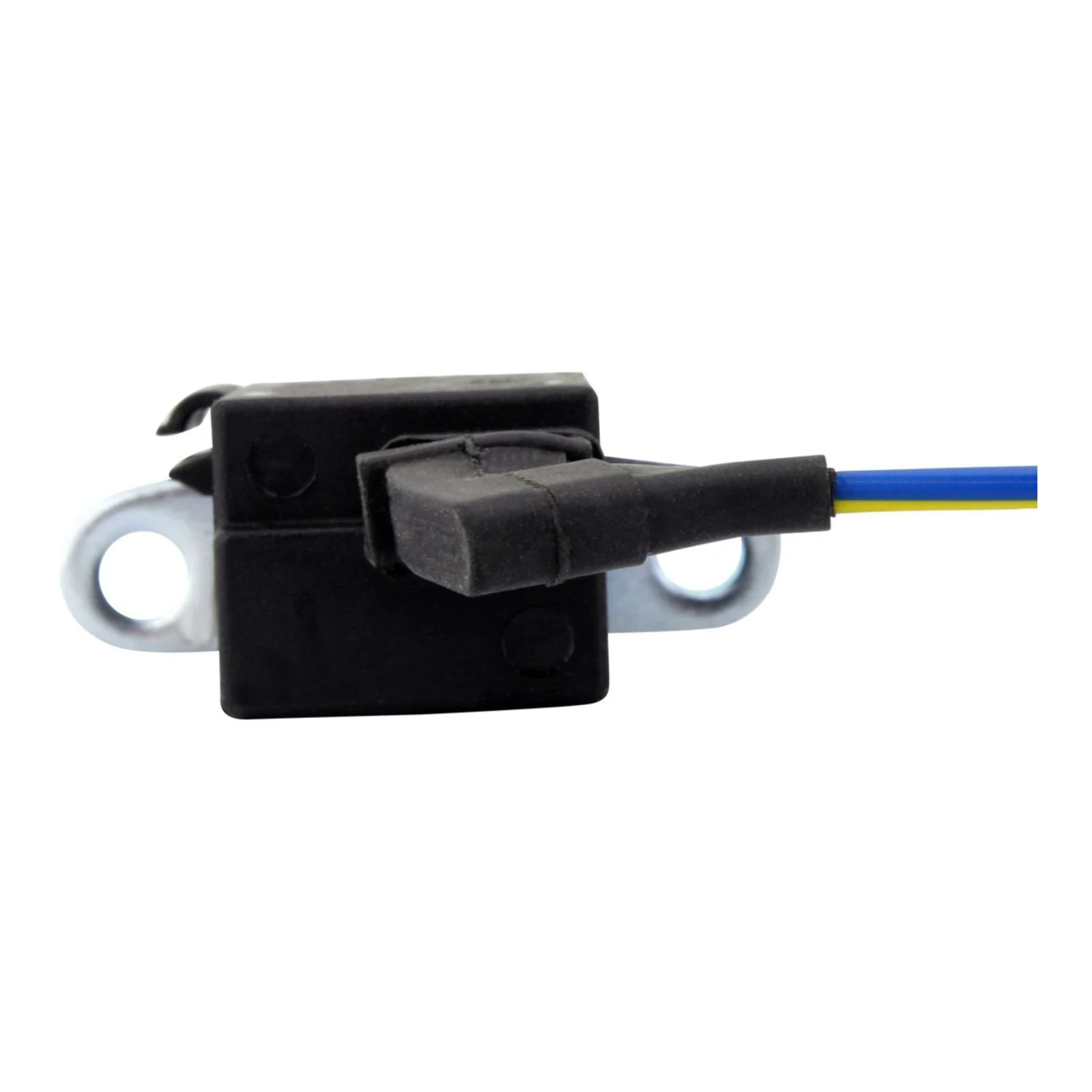

    GENERATOR STATOR HOND TRX 650 RINCON 03-05' - Image 12

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    Brand new aftermarket stator

    • Direct replacement to your original unit
    • Plug-and-play, direct fit, easy installation
    • Highest-grade lamination materials
    • Highest-grade copper windings, resistant to 200 degrees Celsius.
    • Pick up pulsar coil included
    • Connector included
    • Rubber grommet included
    • All products shipped are tested

    Specifications:

    Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 20 mm
  • Length of wires stator to grommet: 75 mm
  • Length of wires grommet to plug: 180 mm

    • Other specifications:

    • Number of wires: 5
    • Number of plugs: 1
    • Number of pins: 5
    • Number of poles: 18

    Wire-to-wire resistance:

    • Alternator: Yellow to Yellow = 0.6 ohms +-20%
    • Alternator: Yellow to ground = O.L
    • Pickup: Blue/Yellow to Green= 340 ohms +-20%
