GENERATOR STATOR CAN-AM OUTLANDER

Plug-and-play, aftermarket replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 41mm
• Exterior diameter: 104mm
• Thickness: 30mm
• Length of wires — stator to grommet: 140mm
• Length of wires — grommet to plug: 850mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Wire to wire resistance:
  • Alternator: Yellow to Yellow = 0.4 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

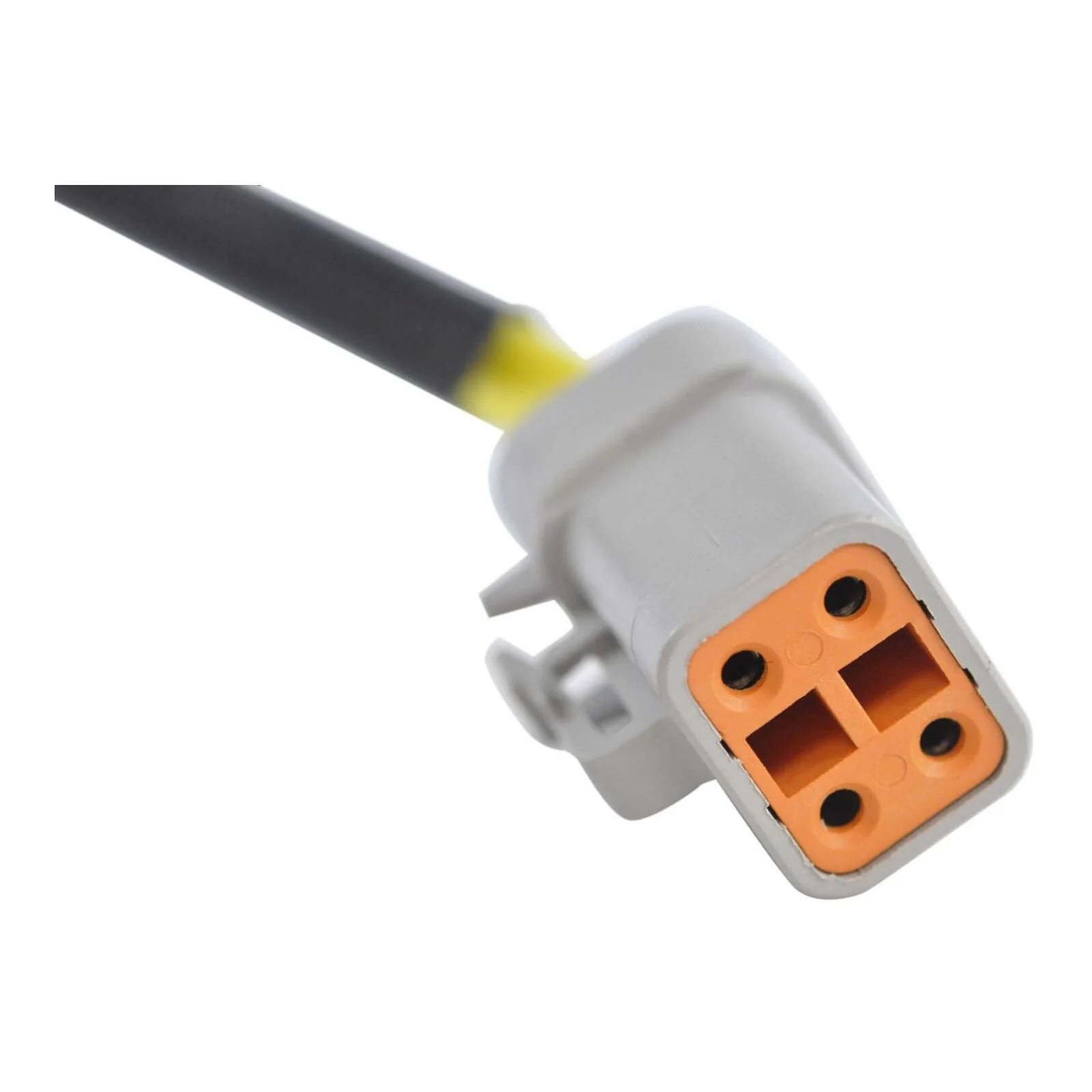

• Connector included
• Rubber grommet included
• All products shipped are tested
