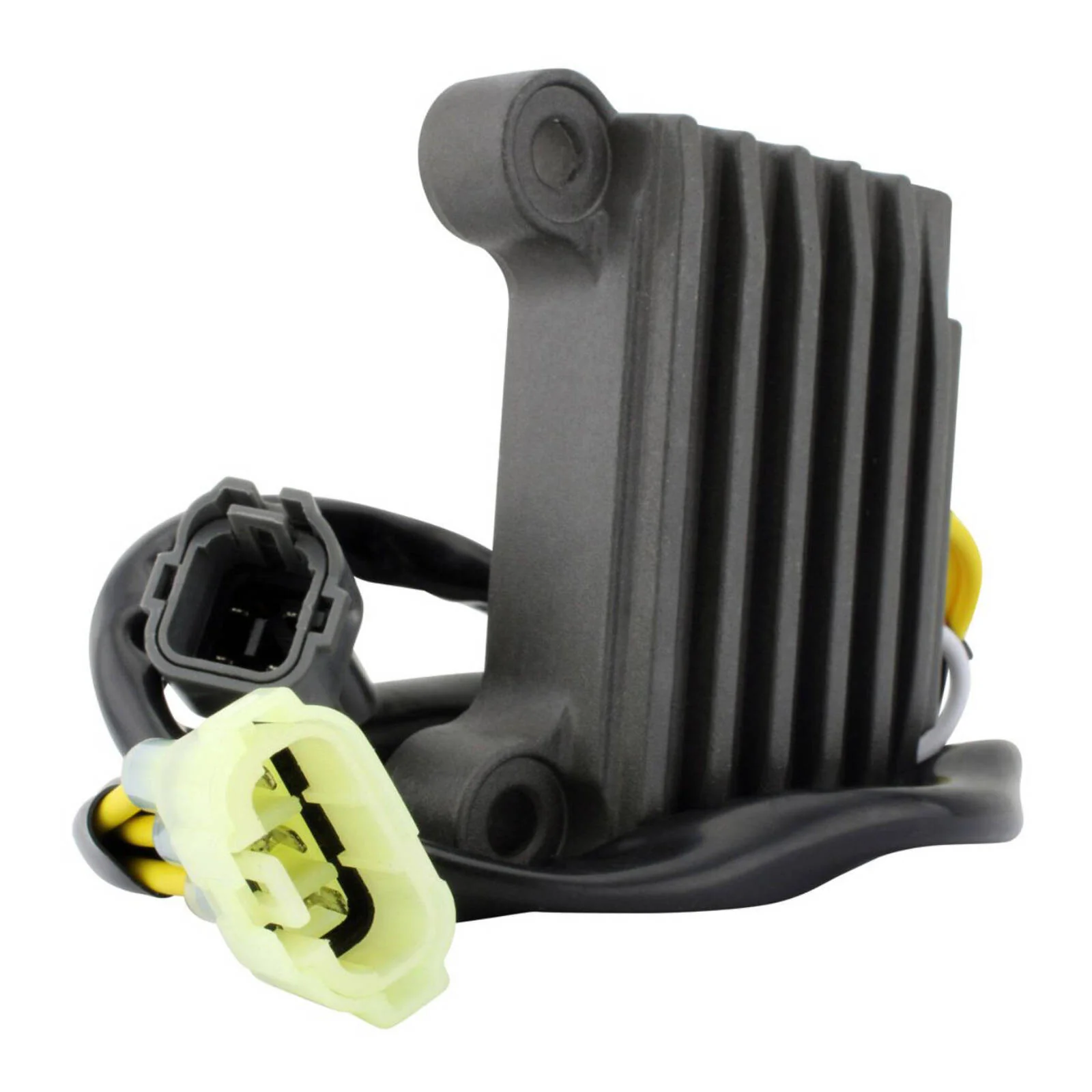

Voltage Regulator - Assorted Models (RMS020-107290)

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher-grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Dimensions: p>

• Width: 74 mm
• Length: 80 mm
• Height: 22 mm
• Wires length #1: 220 mm
• Wires length #2: 440 mm
• Distance between fixation holes center to center: 68 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
